Low
Energy consumption
High
Yield
Low
Footprint

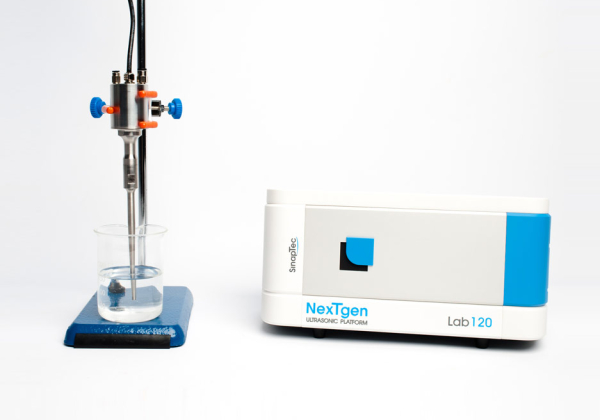

Caractéristiques Générateur NexTgen Lab120
- Max. power: 120 WRMS
- Frequency: 35kHz
- Amplitude setting: 10% – 100%
- Control mode: auto-tuned optimum frequency mode
- Dimensions (LxWxH): 330x145x148mm
- US Start/Stop by LabTablet, dry contact, footswitch
- or PC
35 kHz ultrasonic transducer
- Diameter: 40 mm
- Length: 100.5 mm
- Air cooling input / output
Equipment
- LabTablet for intuitive setting
- NexTgen software, «Start» version
| TECHNICAL INFORMATION | NexTgen LAB120 |
|---|---|
| CONTINUOUS max. (WRMS) POWER | 120 |
| FREQUENCY (kHz) | 35 |
| CONTINUOUS MODE | yes |
| PULSE MODE | yes |
| VOLTAGE (V) | 110-240 |
| OTHER VOLTAGE | – |
| DIMENSIONS (LxWxH) | 330x145x148mm |
| WEIGHT | 3,5kg |
| TOUCH SCREEN INTERFACE | Pushbutton/Footswitch |
| INTERFACE TACTILE | LabTablet |
| COMMUNICATION AND CONTROL | Ethernet |
| PC-SOFT NexTgen “LabPremium” | optional |
| TEMPERATURE SENSOR | optional |
Typical applications
- Homogenization
- Degassing
- Enzyme/ DNA extraction
- Emulsification
- Reaction acceleration
- Bacteria destruction
- Sonochemistry
- Cell lysis
- Extraction
- …
