Low
Energy consumption
High
Yield
Low
Footprint
Features of the NexTgen LabHF generator
- Max. power: 1000WRMS
- Frequency adapted to the Cup Horn operating frequency
- Amplitude setting: 10% – 100%
- Control mode: fixed frequency
- Dimensions (LxWxH): 400x142x148mm
- US Start/Stop by dry contact, footswitch
- or PC

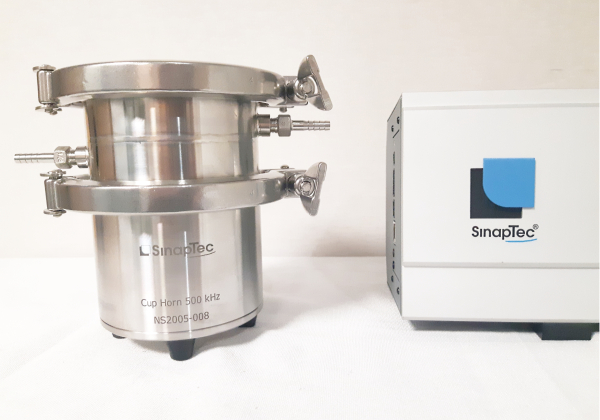

Stainless Steel Cup Horn
Cup Horn 100kHz
- Power delivered : 100Weff
Cup Horn 200kHz
- Power delivered : 100Weff
Cup Horn 380kHz
- Power delivered : 75Weff
Cup Horn 500kHz
- Power delivered : 80Weff
Equipment
- NexTgen software, « Advanced» version
| Technical information | NexTgen LABHF |
|---|---|
| CONTINUOUS max. (WRMS) POWER | 1000 |
| FREQUENCY (kHz) | Adapted to the Cup Horn operating frequency |
| CONTINUOUS MODE | Yes |
| PULSE MODE | Yes |
| VOLTAGE (V) | 220-240 |
| OTHER VOLTAGE | on request |
| DIMENSIONS (LxWxH) | 400x142x148mm |
| WEIGHT | 5.3 kg |
| START/STOP | Pushbutton/Footswitch |
| COMMUNICATION AND CONTROL | Ethernet |
| Technical information | Cup Horn |
|---|---|
| DIAMETER | 119mm |
| HEIGHT | 90mm |
| INPUT/OUTPUT | For air cooling |
| Technical information | Reactor |
|---|---|
| HEIGHT | 58mm |
| TEMPERATURE CONTROL | Possible |
| GLASS REACTOR | Possible |
Typical applications
- Enzyme/ DNA extraction
- Reaction acceleration
- Bacteria destruction
- Sonochemistry
- Cell lysis
- Extraction
- …
