Low
Energy consumption
High
Yield
Low
Footprint

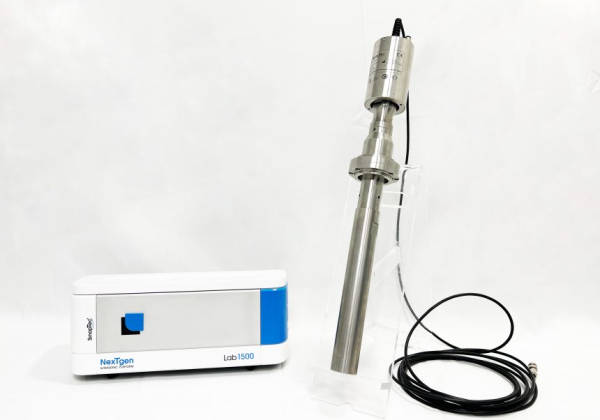

Features of the NexTgen Lab1500 generator
- Max. power: 1500WRMS
- Frequency: 20kHz
- Amplitude setting: 25% – 100%
- Control mode: auto-tuned optimum frequency mode
- Dimensions (LxWxH): 390x145x148mm
- US Start/Stop by Labtablet, dry contact, footswitch or laptop
20 kHz ultrasonic transducer
- Diameter: 69 mm
- Length: 154 mm
- Air cooling input/output
Equipment
- LabTablet for intuitive setting.
- NexTgen software, « Start » version
| Technical information | Standard probe |
|---|---|
| Diameter | 40mm |
| Length | 250mm |
| Sample volume | 1-10l |
| Amplitude | up to 140 µm |
| Material | titanium |
| Technical information | Standard booster |
|---|---|
| Length | 143mm |
| Amplification | 1:1.5 |
| Body materials | titanium |
| Flange materials | stainless steel |
Typical applications
- Homogenization
- Degassing
- Emulsification
- Reaction acceleration
- Bacteria destruction
- Sonochemistry
- Cell lysis
- Extraction
- …
